Pixel-Free LED™ · XW Series
Extreme Weather.
Engineered to Outlast It.
The Pixel-Free LED™ XW Series is built for the installs where standard flex fails first — building facades, rooftop perimeters, coastal architecture, and any exterior application where the lighting must survive what the weather throws at it. –40°C to +60°C. 84,000-hour lifespan. Anti-LED-dead and anti-PCB-breakage construction. Specify it once, and leave it.
84k
Hour lifespan
100°C
Operating range
IP67
Weather sealed
Anti-UV
No yellowing
Engineered For Extremes
–40°C to +60°C. Full Function.
Standard flex derates or fails outside its rated range. The XW Series holds its rated brightness and color consistency across a 100-degree Celsius operating window — from deep winter in Minnesota to rooftop summer in Phoenix.
Cold · No brittlenessHot · No failure
–40°C
Cold limit
Silicone jacket stays flexible — no brittle cracking, no loss of sealing integrity during install or over winter.
100°C
Operating span
Thermal management engineered into the profile — solder joints, PCB, and LEDs all rated for the full range.
+60°C
Hot limit
Rooftop exposure, dark-colored facade absorption, enclosed channels — XW Series holds brightness without derating.

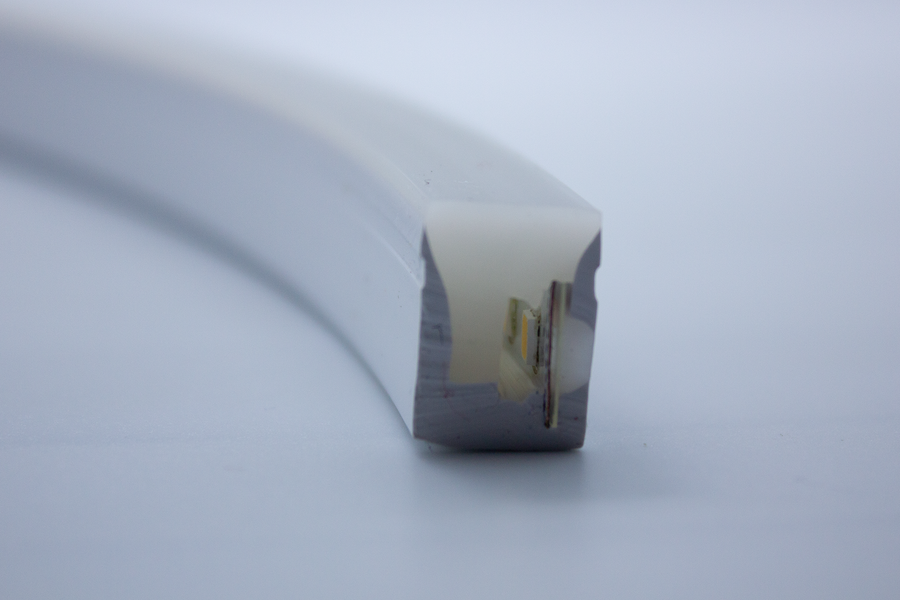

Anti-Failure Engineering
Built So It Can't Break The Way Others Do.
Every failure mode that kills standard neon flex on outdoor installs has been engineered out at the design stage.
Anti-LED-Dead Circuit
Redundant parallel circuit paths — if an individual LED fails, the rest of the run stays lit. No blackouts along the strip from a single dead diode.
Anti-PCB-Breakage Spine
Reinforced flexible PCB with stress-distribution pattern. Survives repeated flexing, thermal cycling, and installation handling without micro-fracturing the copper traces.
Anti-UV Silicone Jacket
UV-stabilized silicone compound — won't yellow, chalk, or embrittle under years of direct sun exposure. Critical for south- and west-facing facades.
Uniform Emission · No Dark Zones
Pixel-free diffusion engineered into the silicone profile — seamless line of light end-to-end, no visible LEDs, no dim patches between emitters, no hotspots.
IP67 Sealed End-to-End
Factory-sealed termination caps, fully encapsulated body. Rated for permanent outdoor installation — rain, snow, coastal salt spray, high humidity.
At A Glance
Spec It Once. Leave It.
84,000
Hour lifespan
–40° / +60°
Operating °C
Anti-UV
No yellowing
Anti-Dead
Redundant circuit
Anti-Break
Reinforced PCB
IP67
Weather sealed
84,000
Hours L70 rated
That's ~23 years at 10 hours/night · ~19 years at 12 hours/night · ~9.5 years running 24/7
Engineered For Longevity
Nearly Double A Typical Outdoor Rating.
Most commercial-grade neon flex carries a 50,000-hour L70 rating. The XW Series is rated to 84,000 hours at L70 — meaning it's still outputting at least 70% of its original brightness after more than two decades of evening-hour operation.
The extended lifespan is a direct consequence of the anti-dead circuit design, the reinforced PCB, and the UV-stable silicone — every component rated for the full service life, not just the weakest link.
L70
Rating standard
84,000h
Rated service life
5yr
Warranty
Low
Maintenance burden
UV Yellowing Test
Standard Silicone vs. Anti-UV XW.
After accelerated UV aging — equivalent to multiple years of direct outdoor sun exposure — standard silicone jackets yellow, chalk, and lose clarity. The XW Series silicone holds its original white color and translucency.

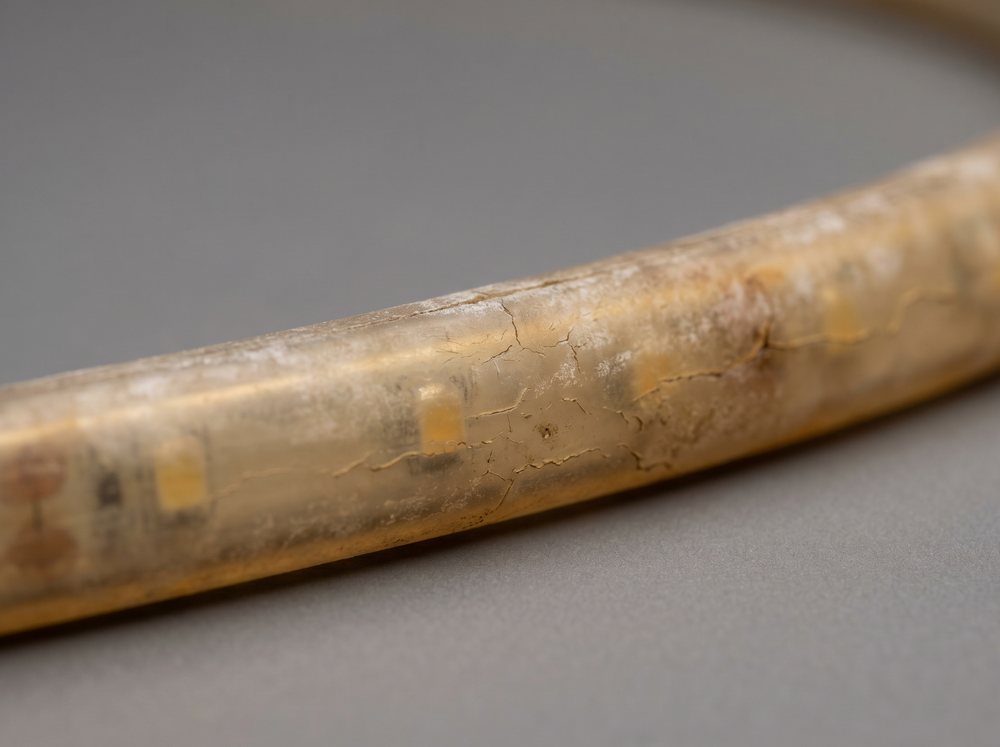

Standard Silicone
Yellowed · Clouded · Embrittled
Standard silicone compounds chalk and yellow under sustained UV exposure. Output color shifts warm, clarity drops, and the jacket becomes brittle — cracking under thermal cycling.

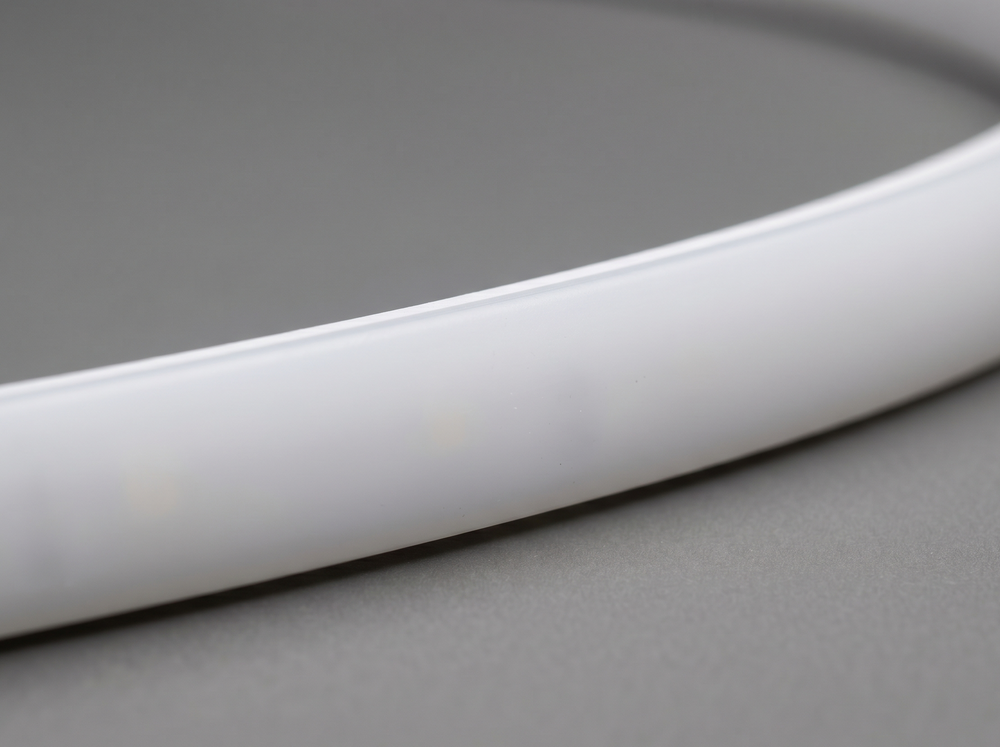

XW Anti-UV Silicone
Clear · Flexible · Color-Stable
UV-stabilized compound holds original clarity and flexibility. No yellow shift, no chalking, no brittleness — the install looks the same year 5 as it did on day one.
In The Wild
Built For Facades. Specified For Landmarks.
The XW Series has been specified on large-scale architectural facade lighting projects worldwide — exterior building outlines, rooftop perimeters, and landmark illumination where replacement access is expensive and failure is not an option.

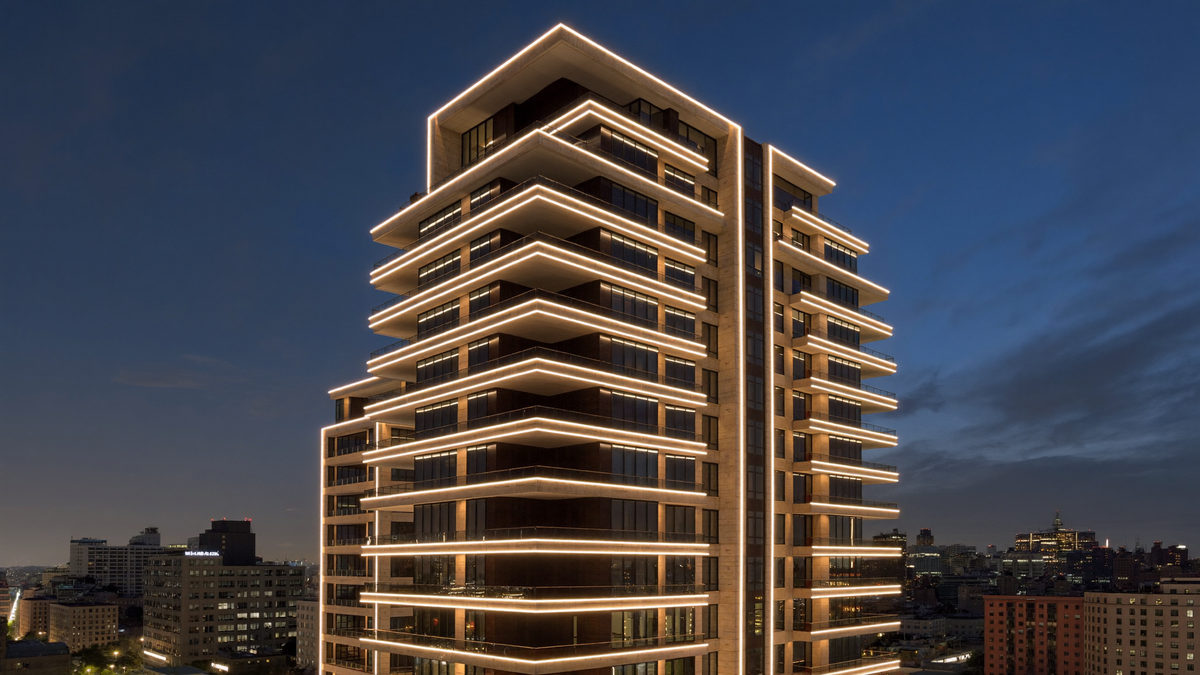

Building Facade

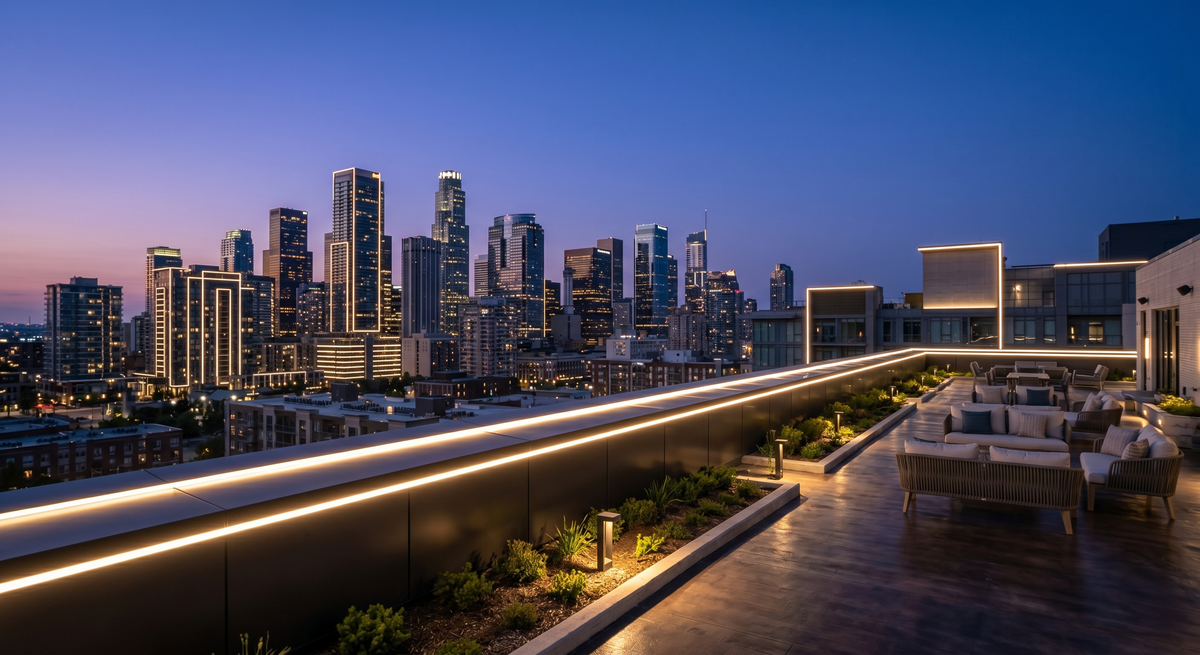

Rooftop Perimeter

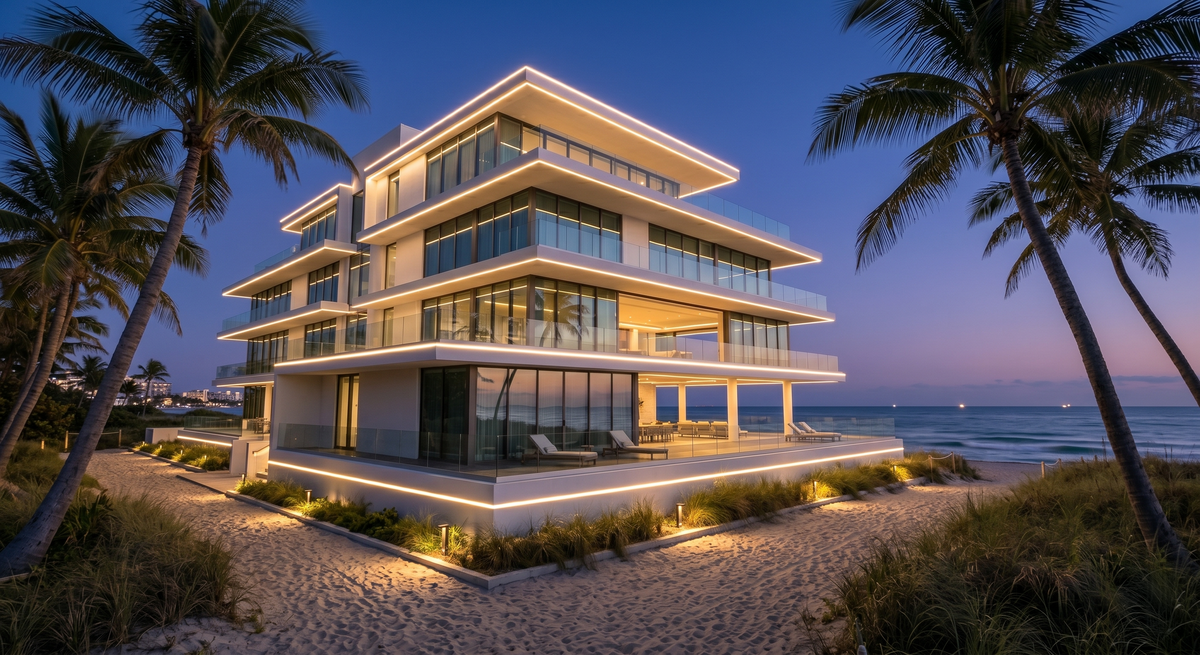

Coastal Architecture

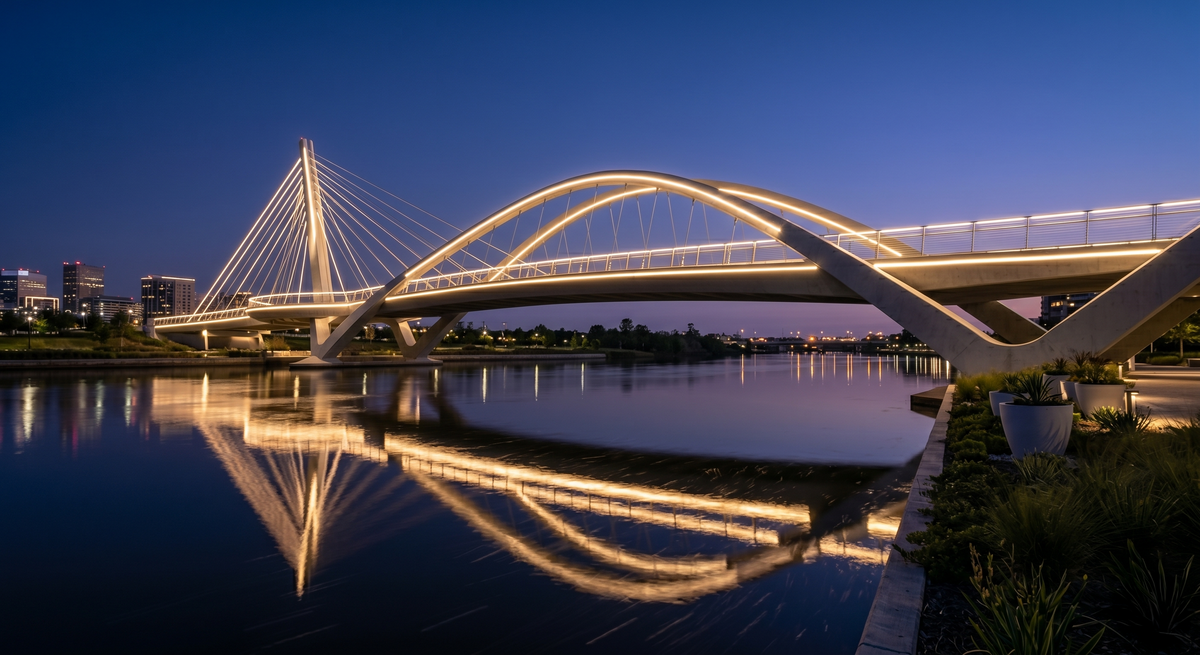

Bridge Outline

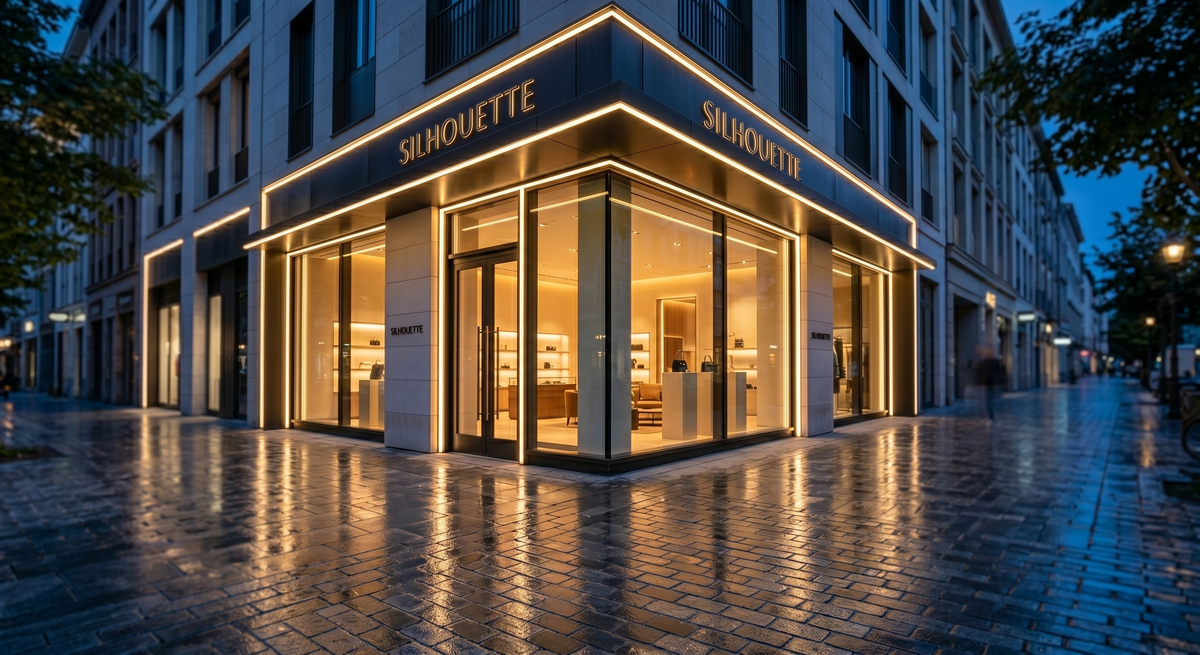

Retail Exterior
Full Specifications
Every Number You Need To Spec The Job.
TechnologyPixel-Free LED™ XW
ProfileFacade-grade silicone extrusion
EmissionUniform · no dark zones
Operating range–40°C to +60°C
Lifespan (L70)84,000 hours
Circuit designAnti-LED-dead · redundant
PCBAnti-breakage reinforced
UV resistanceAnti-UV yellowing compound
IP ratingIP67
Voltage24V DC
CRI>90
Color temperatures2700K · 3000K · 4000K · 6000K
Colors availableWhite · Warm · RGB · RGBW
CuttableAt marked intervals
CertificationsUL · CE · RoHS
Warranty5 years
The XW Family
Three Configurations. One Durability Standard.
Pick the variant that matches your install. Same 84,000-hour lifespan, same weather rating, same anti-failure engineering — different output and control for different jobs.
Standard

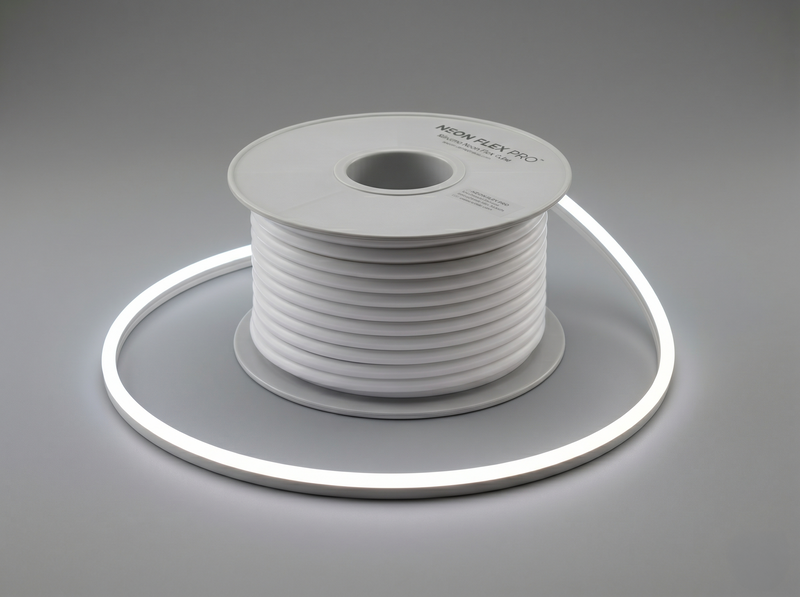

XW White
Single-color-temperature white output in 2700K, 3000K, 4000K, or 6000K. The default specification for architectural facade outlining and rooftop perimeters where the light is the statement, not the color.
Shop XW White
Color · Control

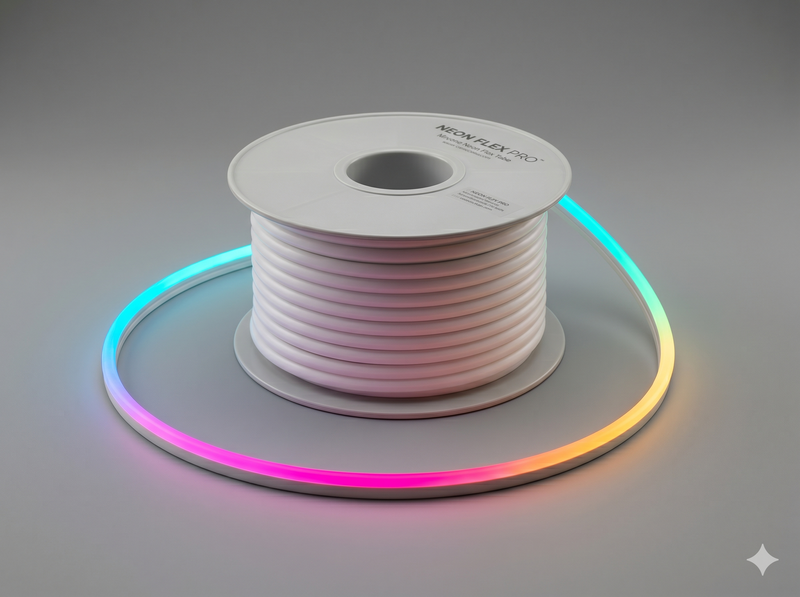

XW RGB
Full-color variant with DMX and Art-Net compatibility. Used for branded building facades, landmark illumination, stadium exteriors, and any project where scene programming is part of the design intent.
Shop XW RGB
Premium · Full Gamut

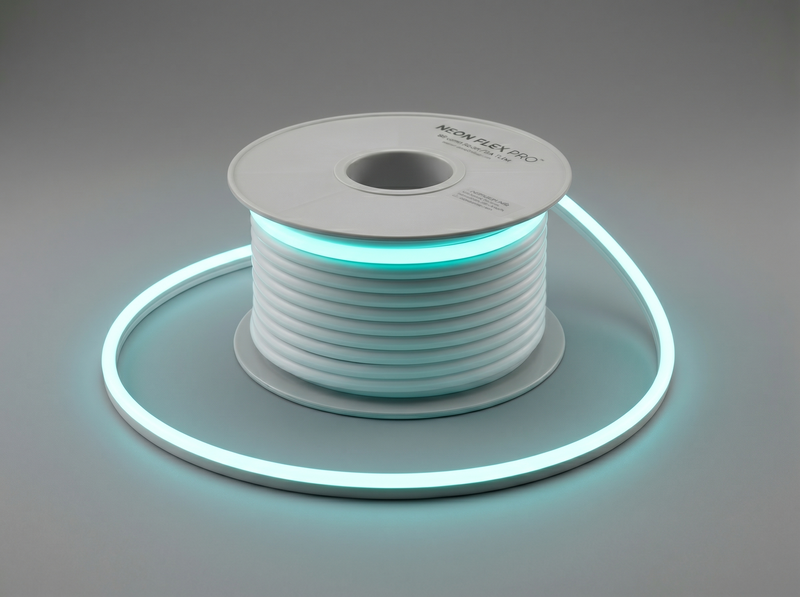

XW RGBW
Four-channel variant adds a dedicated white emitter to the RGB set — enables accurate architectural whites and pastels that RGB alone can't produce. The spec for facades that need both color scenes and clean white states.
Shop XW RGBWProject Support · Commercial Facade Lighting
Spec'ing A Facade Project?
Large-scale architectural facade lighting isn't a standard SKU order — it's a spec document, a run calculation, a driver layout, and a long-term service plan. Our project team sizes the driver count, validates run layouts, pulls cut lengths, and quotes at commercial volume for architects, GCs, and lighting designers.
