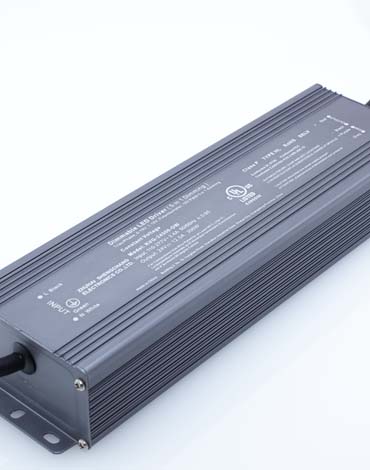

24V Wavelux Universal Dimmable LED Power Supply - 300W - Compatible With Most Wall Dimmers
- Indoor and Outdoor Rated
- Compatible With Most Dimmers
- Full 0-100% dimming
- Flicker Free Operation
- UL Listed (E495946)
$249.99
Free Shipping
Orders over $50
Secure Checkout
SSL encrypted
30-Day Warranty
Against defects
The 24V Wavelux Universal Dimmable LED Power Supply is a 5 in 1 Dimming capable supply, that provides a large amount of power (up to 300W Max) into a single form factor. With a Universal Input (100-277VAC) that provides a flicker-free dimming light output for nearly any 24V LED Strip Light, including the Wavelux LED Strips and Pixel-Free LED product line. This supply is compatible with nearly any dimmer, including Forward Phase, Reverse Phase, Triac, MLV, ELV, 0-10V, Potentiometer and 10V PWM dimmers. This makes it great when installing it virtually any location; indoor or outdoor, residential or commercial, and complete with the safety requirements for discerning clients like UL, cUL, FCC, RoHS, etc. This Class P power supply carries a Power Factor rating up to 0.95 and provides a full dimming range from 0-100%. This power supply can be used anywhere you need like kitchens, bathrooms, outdoor, or commercial settings, and is suitable for dry, damp and wet locations.
Dimensions: 276 x 78 x 48mm
Weight: 1.7kg (3.74lbs)
Input Voltage: 100-277VAC
Power Factor: 0.95
Output Voltage: 24V DC +/-0.5V
Rated Power: 12.5A (300W Max)
Working Temp: -40 - 60C
Class P, Type HL
Certifications: UL, cUL, FCC, RoHS, SELV
5 in 1 Dimming: Triac/Phase, 0-10V, 1-10V, Potentiometer, 10V PWM
Weight: 1.7kg (3.74lbs)
Input Voltage: 100-277VAC
Power Factor: 0.95
Output Voltage: 24V DC +/-0.5V
Rated Power: 12.5A (300W Max)
Working Temp: -40 - 60C
Class P, Type HL
Certifications: UL, cUL, FCC, RoHS, SELV
5 in 1 Dimming: Triac/Phase, 0-10V, 1-10V, Potentiometer, 10V PWM
