Electroluminescent
Advanced Embedded Light.
Electroluminescent
VynEL™ Splash Rectangle Panel (New Skin)
- Heat Bondable
- Extremely Water Resistant
- Durable
- Practical For Many Applications
$84.99
Free Shipping
Orders over $50
Secure Checkout
SSL encrypted
30-Day Warranty
Against defects

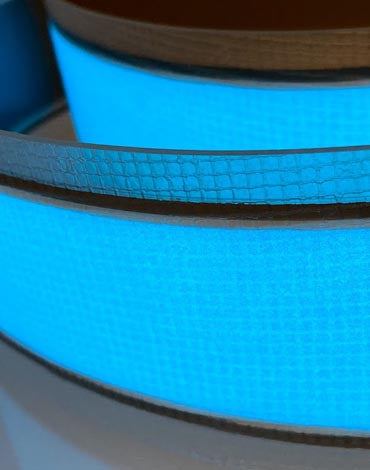

The VynEL™ Splash Rectangle panel is our most water resistant off-the-shelf product, suitable for countless wet applications. We recently added a new skin to this material, so it has a great texture, as well as a heat bonding agent on the backside. Simply heat bond to you fabric, neoprene, nylon or other materials easily and create a lasting light. Perfect for marine courtesy lights, pathway lighting, and much more. The rectangle format works cleanly as a backlight; add your own logo to the top with heat transfer vinyl, or anything else that needs to add embedded light.
Built on Splash Technology
Splash is VynEL™'s most water resistant formulation. The panel introduces a new way to encapsulate VynEL materials with a flat, flexible interface that manages a submersible design. This product, like other VynEL products can be custom made into virtually any shape, size or color. Built for garments that actually get worn.
Who This Is For
- Water sports and water safety clients
- Fire, Safety and Rescue
- Product developers prototyping lit emergency services apparel
Sold A La Carte
This panel ships without an inverter. You'll need a compatible EL inverter to power it. Pick one up below or browse the full inverter lineup at EL Inverters and Power.
- AA Button Battery Pack -- tactile button, easy to locate through clothing
- AAA Silent Battery Pack -- quiet operation
- 9V Battery Pack -- powers up to 3 panels simultaneously
- Silent Wave Rechargeable Inverter -- rechargeable, whisper quiet
Ready to Go Custom?
This standard shape is ideal for prototyping. When you're ready to move to a custom size, logo, or color, we produce custom VynEL™ Splash panels with a one-time $500 NRE plate charge. Contact us at info@ellumiglow.com or call 877.615.6556.
Not Sure Which VynEL™ Is Right For You?
| Decal Window / Signage | HD Heavy Duty | Flow Apparel / Wearables | Cling Automotive / Vehicle | Splash ★ Marine / Submersible | Wear Coming Soon | |
|---|---|---|---|---|---|---|
| Thickness | 0.5-0.8mm | 0.5-0.8mm | 0.25-0.5mm | 0.5-0.8mm | 1-1.6mm | 0.4-0.7mm |
| Flexibility | Moderate | Semi-Flexible | Most Flexible | Stretch / 3D | Most Robust | Maximum Flex |
| Water Rating | Resistant | IP67 | Wash Rated | IP67+ | Submersible | Wash Rated |
| Attachment | Adhesive | Heat Bond / Sew | Heat Bond / Sew | PSA Wrap | Sew / Bond | Sew / Bond |
| Brightness | 300-400 cd/m² | 300-400 cd/m² | 250-350 cd/m² | 300-400 cd/m² | 300-400 cd/m² | 300-400cd/m² |
| Best Use | Retail, windows | Outerwear, gear | Shirts, activewear | Vehicles, aircraft | Marine, life gear | Skin-contact, silicone applications |
★ Currently viewing VynEL™ Splash. Browse all VynEL™ variants | VynEL™ Wear Coming Soon
Size: 783mm x 77mm (31 x 2.25") Total Surface
770mm x 37mm (30.25 x 1.5") Lit Surface
770mm x 37mm (30.25 x 1.5") Lit Surface
Shipping
We use USPS, UPS, FedEx and DHL (International). Most orders process in 24–48 hours. Custom cut or custom made orders can exceed this. If you have a deadline, please contact us before ordering.
Returns
All returns require a return authorization code (RAC). Email info@ellumiglow.com with your Order ID to receive one. Approved returns receive a full refund less shipping and a 10% restocking fee.
Custom Orders: Custom lengths of EL Wire, EL Tape, EL Paint, EL Panels, LED Strip Lights, Laser Wire, SewGlo and VynEL™ are non-returnable due to their custom nature.
Return Steps
- Contact us at 877-615-6556 or support@ellumiglow.com for an RAC number.
- Write the RAC code on the outside of your return package.
- Ship the item back per our instructions.
- Our team will process your replacement or refund.
