Electroluminescent
SKU: VYN011-EOE222In Stock

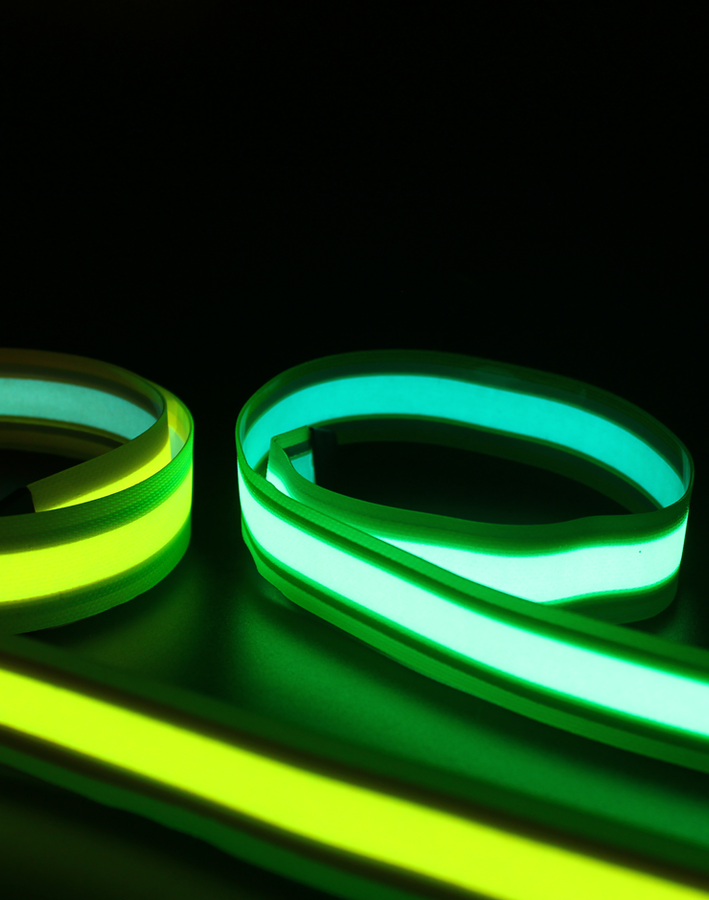

VynEL™ HD Kit 1mx1cm (39x0.39")

  • Conforms to any shape - 5mm bend radius, 10x tighter than standard EL Tape
  • Sewable or heat bondable directly into fabrics and textiles
  • Waterproof - wear it, wrap it, take it outside
  • Plug-N-Play with EZ Snap Connector - no wiring required
  • Lightweight and flexible - it takes the shape of your product, not the other way around
$38.99
Color Vibrant Blue
Inverter Options AA Button Battery Pack
Free Shipping Orders over $50
Secure Checkout SSL encrypted
30-Day Warranty Against defects

The VynEL™ HD 1M Strip Light is a one meter length of VynEL™ HD with EZ Snap Connectors already attached: male on one end, female on the other. Plug it straight in or chain it to more strips. No soldering needed.

What's New in V3 HD

We rebuilt the third generation of VynEL™ HD with better materials. V3 is thinner and more flexible than V2, with a 2.5mm bend radius, half that of the previous version. It also has better water resistance. The upgraded materials make the light-emitting layer more efficient. In side-by-side testing under the same conditions, V3 HD measured over 50% brighter than V2.

Built for Heavy Duty Use

HD is made for projects that get used hard, like outerwear, sporting goods, and outdoor gear. The textured outer finish protects the strip from abrasion and repeated flexing. If your project needs to bend, follow a shape, and hold up to regular use, this is the strip to choose.

Working with activewear or stretch fabrics? VynEL™ Flow is our lighter, stretch-friendly version, made for performance fabrics.

What Is VynEL™?

VynEL™ started as EL Tape. Standard EL Tape has a rigid metal backing, so your project has to bend to fit the tape. We removed that backing. What's left is an electroluminescent strip with a 2.5mm bend radius, much tighter than typical EL Tape. It wraps around curves and fits into fabric and gear without fighting their shape. You can sew it or heat bond it directly into fabric.

Does VynEL™ Require an Inverter?

Yes. VynEL™ is electroluminescent, so it needs high-frequency AC power to light up. This kit includes a compatible EL inverter, so it's ready to light out of the box. Choose the right inverter for your application.

VynEL™ vs. Standard EL Panels

Why use VynEL™ instead of an EL panel?
EL panels are flat, rigid, and fixed in shape. They work well in flat, static installs, but they can't follow curves or handle movement. Without the metal backing, VynEL™ bends to fit your object instead of forcing your design around it. Tent walls, helmet contours, jacket seams, and curved signage are all good fits.

Is VynEL™ lighter than an EL panel?
Yes, by a noticeable amount. The metal layer in standard EL Tape and panels adds weight and stiffness. That's fine in a fixed install, but it's a problem in wearables and lightweight gear. VynEL™ is thin and light enough to go into clothing without changing how the garment hangs or fits.

Is VynEL™ as bright as an EL panel?
With the V3 upgrade, VynEL™ HD's brightness is brighter than a standard EL panel, and you also get a strip that bends, flexes, and sews into fabric.

Can I cut VynEL™ to length?
Yes, but every cut end has to be re-terminated so the strip keeps a working electrical connection. For prototypes and one-off projects, follow the steps in our EL Guide section. For volume or production orders, we recommend ordering a custom engineered panel instead of trimming standard strips. This will keep the water resistance, and panel working at its optimal performance.

Is VynEL™ water resistant?
Yes. The VynEL™ HD V3 strip is water resistant to a depth of 1 meter for up to 30 minutes, so it handles rain, sweat, splashes, and brief submersion. The EZ Snap connectors and inverter are not water resistant, so keep them dry or seal them for wet environments.

Not Sure Which VynEL™ Is Right For You?

Decal Window / Signage HD ★ Heavy Duty Flow Apparel / Wearables Cling Automotive / Vehicle Splash Marine / Submersible Wear Coming Soon
Thickness 0.5-0.8mm 0.5-0.8mm 0.25-0.5mm 0.5-0.8mm 1-1.6mm 0.4-0.7mm
Flexibility Moderate Semi-Flexible Most Flexible Stretch / 3D Most Robust Maximum Flex
Water Rating Resistant IP67 Wash Rated IP67+ Submersible Wash Rated
Attachment Adhesive Heat Bond / Sew Heat Bond / Sew PSA Wrap Sew / Bond Sew / Bond
Brightness 300-400 cd/m² 300-400 cd/m² 250-350 cd/m² 300-400 cd/m² 300-400 cd/m² 300-400cd/m²
Best Use Retail, windows Outerwear, gear Shirts, activewear Vehicles, aircraft Marine, life gear Skin-contact, silicone applications

★ Currently viewing VynEL™ Hd. Browse all VynEL™ variants  |  VynEL™ Wear Coming Soon

Overall Measurement: 100cm x 2.54cm (39" x 1")
Glowing Surface: 95cm x 1cm (37" x 0.43")
Thickness: 0.7mm
Minimum Bend Radius: 5mm
Technology: Electroluminescent (EL)
Operating Voltage: 80-150V AC
Operating Frequency: 400-8,000Hz
Lifespan: 5,000-7,000 Hours
Operating Temperature: -50°C to +65°C (-58°F to 149°F)
Water Resistance: Waterproof -- withstands 25+ machine wash cycles
Finish: Textured (HD)
Backing: Flexible, no rigid metal substrate
Connector: EZ Snap (locking, lightweight)
Application Method: Sewable or heat bondable (requires heat bonding film - not included)
Heat Emission: None
