Electroluminescent
Advanced Embedded Light.
Electroluminescent
VynEL™ HD Badge Panel Light (51x77mm/2x3")
- Pre-cut and ready to bond - no fabrication required
- Heat press or iron directly onto fabric
- VynEL™ HD material - 0.5-0.8mm, textured finish, IP67 rated
- 25+ machine wash cycles
- Inverter sold separately
$22.99
Free Shipping
Orders over $50
Secure Checkout
SSL encrypted
30-Day Warranty
Against defects

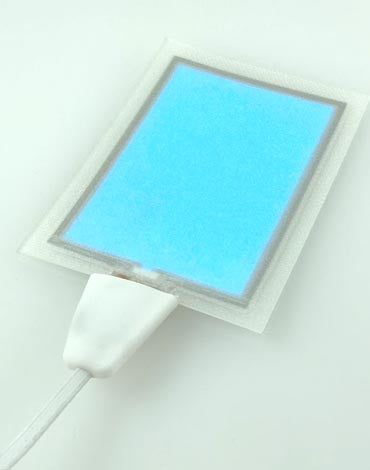

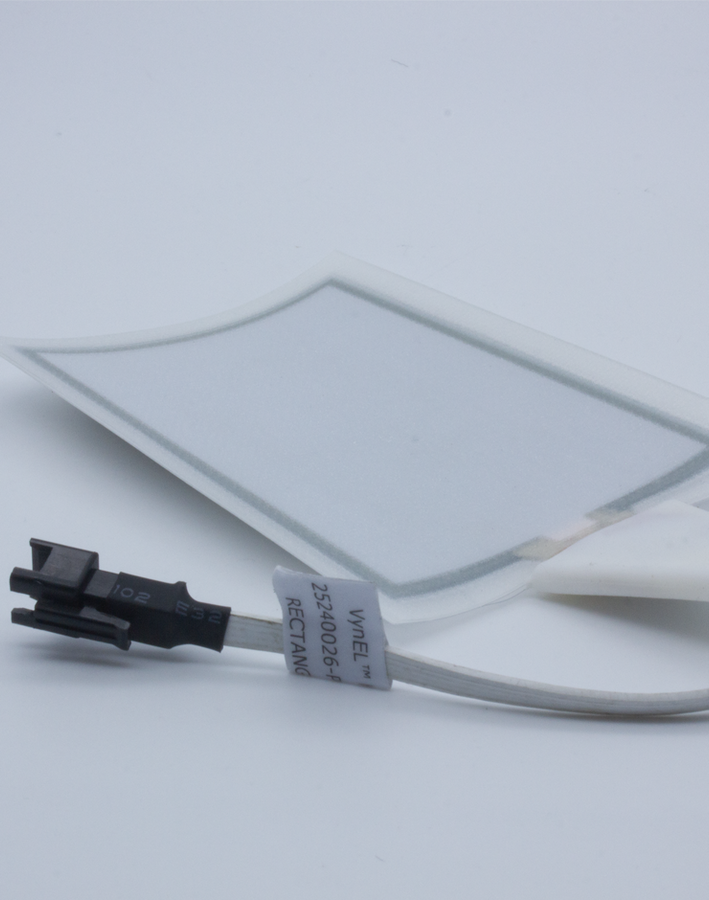

The VynEL™ HD Badge is a pre-cut rectangular panel at 51mm x 77mm (2" x 3") - business card footprint, built to light up. Clean edges, consistent glow, and the durability of the HD formulation make it the go-to shape for branded apparel elements, chest patches, bag panels, and costume builds.
Built on HD Technology
The HD material is VynEL™'s heavy duty formulation -- textured finish, 0.5-0.8mm thick, IP67 rated, and rated for 25+ machine wash cycles. It sews or heat bonds directly to fabric and holds up under repeated use. When your application needs a light element that doesn't quit, HD is the right material.
Who This Is For
- Brands adding illuminated logo panels to jackets, vests, and outerwear
- Cosplayers building chest emblems, name badges, or lit costume details
- Product developers evaluating VynEL™ HD in a standard shape before ordering custom
- Makers who need a clean rectangular light element, ready to bond
Sold A La Carte
This panel ships without an inverter (unless selected). You'll need a compatible EL inverter to power it. Pick one up below or browse the full inverter lineup at EL Inverters and Power.
- AA Button Battery Pack -- tactile button, easy to locate through clothing
- AAA Silent Battery Pack -- quiet operation
- 9V Battery Pack -- powers up to 3 panels simultaneously
- Silent Wave Rechargeable Inverter -- rechargeable, whisper quiet
Ready to Go Custom?
This standard shape is ideal for prototyping. When you're ready to move to a custom logo, die-cut shape, or specific color, we produce custom VynEL™ HD panels with a one-time $500 NRE plate charge. Contact us at info@ellumiglow.com or call 877.615.6556.
Not Sure Which VynEL™ Is Right For You?
| Decal Window / Signage | HD ★ Heavy Duty | Flow Apparel / Wearables | Cling Automotive / Vehicle | Splash Marine / Submersible | Wear Coming Soon | |
|---|---|---|---|---|---|---|
| Thickness | 0.5-0.8mm | 0.5-0.8mm | 0.25-0.5mm | 0.5-0.8mm | 1-1.6mm | 0.4-0.7mm |
| Flexibility | Moderate | Semi-Flexible | Most Flexible | Stretch / 3D | Most Robust | Maximum Flex |
| Water Rating | Resistant | IP67 | Wash Rated | IP67+ | Submersible | Wash Rated |
| Attachment | Adhesive | Heat Bond / Sew | Heat Bond / Sew | PSA Wrap | Sew / Bond | Sew / Bond |
| Brightness | 300-400 cd/m² | 300-400 cd/m² | 250-350 cd/m² | 300-400 cd/m² | 300-400 cd/m² | 300-400cd/m² |
| Best Use | Retail, windows | Outerwear, gear | Shirts, activewear | Vehicles, aircraft | Marine, life gear | Skin-contact, silicone applications |
★ Currently viewing VynEL™ Hd. Browse all VynEL™ variants | VynEL™ Wear Coming Soon
Overall Measurement: 51mm x 77mm (2" x 3")
Lifespan: 5,000-7,000 Hours
No Heat Lighting
Lifespan: 5,000-7,000 Hours
No Heat Lighting
