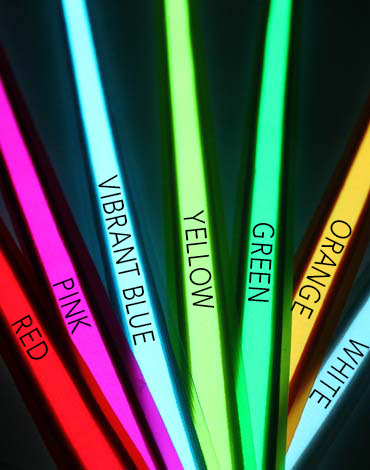

The VynEL™ HD 1M Strip Light is a one meter length of VynEL™ HD with EZ Snap Connectors already attached: male on one end, female on the other. Plug it straight in or chain it to more strips. No soldering needed. For chains longer than 2pcs, we recommend running in parallel for best performance.
We rebuilt the third generation of VynEL™ HD with better materials. V3 is thinner and more flexible than V2, with a 2.5mm bend radius, half that of the previous version. It also has better water resistance. The new materials make the light-emitting layer more efficient. In side-by-side testing under the same conditions, V3 HD measured over 50% brighter than V2.
HD is made for projects that get used hard, like outerwear, sporting goods, and outdoor gear. The textured outer finish protects the strip from abrasion and repeated flexing. If your project needs to bend, follow a shape, and hold up to regular use, this is the strip to choose.
Working with activewear or stretch fabrics? VynEL™ Flow is our lighter, stretch-friendly version, made for performance fabrics.
VynEL™ started as EL Tape. Standard EL Tape has a rigid metal backing, so your project has to bend to fit the tape. We removed that backing, and used performance materials to allow substantially better performance of the product. What's left is an electroluminescent strip with a 2.5mm bend radius, much tighter than typical EL Tape. It wraps around curves and fits into fabric and gear without fighting their shape. You can sew it or heat bond it directly into fabric.
Yes. VynEL™ is electroluminescent, so it needs high-frequency AC power to light up. This strip does not include an inverter. Pair it with any of our EL inverters rated for at least 19 square inches, or choose the VynEL™ HD 1M Kit, which comes with one.
Why use VynEL™ instead of an EL panel?
EL panels are flat, rigid, and fixed in shape. They work well in flat, static installs, but they can't follow curves or handle movement. Without the metal backing, VynEL™ bends to fit your object instead of forcing your design around it. Tent walls, helmet contours, jacket seams, and curved signage are all good fits.
Is VynEL™ lighter than an EL panel?
Yes, by a noticeable amount. The metal layer in standard EL Tape and panels adds weight and stiffness. That's fine in a fixed install, but it's a problem in wearables and lightweight gear. VynEL™ is thin and light enough to go into clothing without changing how the garment hangs or fits.
Is VynEL™ as bright as an EL panel?
With the V3 upgrade, VynEL™ HD's brightness is brighter than a standard EL panel, and you also get a strip that bends, flexes, and sews into fabric. Earlier generations gave up some brightness for flexibility. V3 increases the performance and brightness.
Can I cut VynEL™ to length?
Yes, but every cut end has to be re-terminated so the strip keeps a working electrical connection. For prototypes and one-off projects, follow the steps in our EL Guide section. For volume or production orders, we recommend ordering a custom engineered panel instead of trimming standard strips.
Is VynEL™ water resistant?
Yes. The VynEL™ HD V3 strip is water resistant to a depth of 1 meter for up to 30 minutes, so it handles rain, sweat, splashes, and brief submersion. The EZ Snap connectors and inverter are not water resistant, so keep them dry or seal them for wet environments.
| Decal Window / Signage | HD ★ Heavy Duty | Flow Apparel / Wearables | Cling Automotive / Vehicle | Splash Marine / Submersible | Wear Coming Soon | |
|---|---|---|---|---|---|---|
| Thickness | 0.5-0.8mm | 0.5-0.8mm | 0.25-0.5mm | 0.5-0.8mm | 1-1.6mm | 0.4-0.7mm |
| Flexibility | Moderate | Semi-Flexible | Most Flexible | Stretch / 3D | Most Robust | Maximum Flex |
| Water Rating | Resistant | IP67 | Wash Rated | IP67+ | Submersible | Wash Rated |
| Attachment | Adhesive | Heat Bond / Sew | Heat Bond / Sew | PSA Wrap | Sew / Bond | Sew / Bond |
| Brightness | 300-400 cd/m² | 300-400 cd/m² | 250-350 cd/m² | 300-400 cd/m² | 300-400 cd/m² | 300-400cd/m² |
| Best Use | Retail, windows | Outerwear, gear | Shirts, activewear | Vehicles, aircraft | Marine, life gear | Skin-contact, silicone applications |
★ Currently viewing VynEL™ Hd. Browse all VynEL™ variants | VynEL™ Wear Coming Soon
