SKU: PFB002-4000KIn Stock

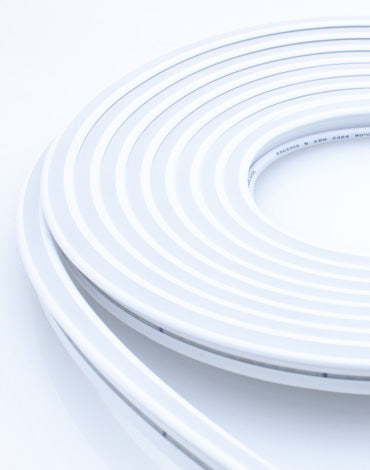

Pixel-Free LED™ Base Trim LED Strip Light

    • Flanged Design For Easy Finishing
    • Bright, Even Illumination
    • Field Cuttable
    • Finished Face Means No Extra Diffusion
$139.99
Color Natural White (3700k)
Size Small (3x6mm)
Free Shipping Orders over $50
Secure Checkout SSL encrypted
30-Day Warranty Against defects

The new 24V Pixel-Free LED™ BASE TRIM is a beautifully crafted LED Strip light that is not only fully diffused, but also comes with a unique flange (or wings) which allow the product to be press fit into place, and allows the light to sit barely proud of its surface. This eliminates the need for any extra base or trimming out the product to make it look complete. Simply mount with the Pixel-Free LED™ Base Channel, or route directly into your surface. It's a complete solution that installs in seconds, and like our standard Pixel-Free LED™ Trim housing, has an indoor and outdoor grade jacketing which can be installed anywhere you see fit. The smooth silicone casing is soft to the touch, and has a high end look and feel, right out of the box, without the need of diffusers of any kind! Its slim profile makes this light perfect for signage, residential, commercial, highlighting features, trade show booths, events, stage performances, faux neon effects, and much more. It's quickly becoming our favorite product to use on many applications, due to its tight bending diameter, easy to use, and cost effective for many applications!

We  now have 2 different sizes of this product; the Small which has a size of 3x6mm (which is 3.4m [135"] in length), and a 6x12mm (5m or 196" length).

Looking to mount this product? Check out the Pixel-Free LED Trim Mounting Channel, or Mounting Clips. Want to make professional connections with your Pixel-Free LED Trim strips? Check out the Pixel-Free LED Silicone End Cap Set.


  • Small Size: 3mm x 6mm x 3.4m

  • Medium Size: 6mm x 12mm x 5m

  • Cuttable: Every 25mm (~1")

  • Input: 24V DC

  • Color Temperature: 2700K, 3000K, 4000K, Blue, Red, Green, Yellow

  • CRI: >80

  • Beam Angle: 120°

  • Brightness: 320 lumens per meter

  • Consumption: 9.6W / meter

  • Lifespan: 36,000 Hours

  • Connection: 50cm Cable with tinned lead wire at one end

  • Outdoor Rated

  • Waterproof Rating: IP65

  • Bending Radius: >30mm

  • Certifications: UL, CE, RoHS

  • Chemical Resistance: Saltwater Resistant, Solvent Resistant, UV Resistant
