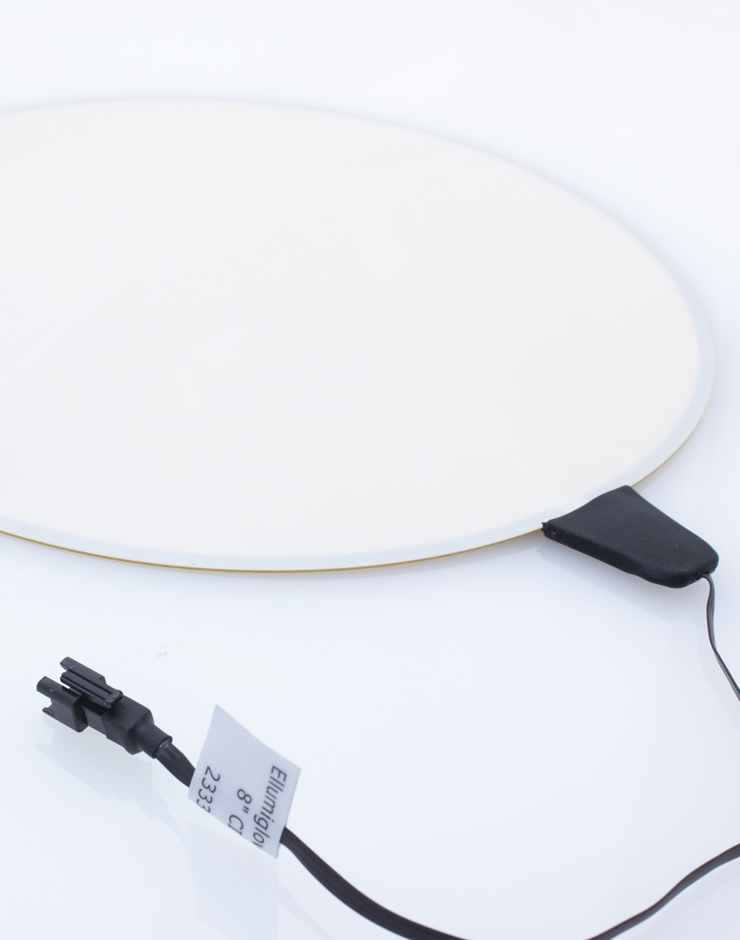

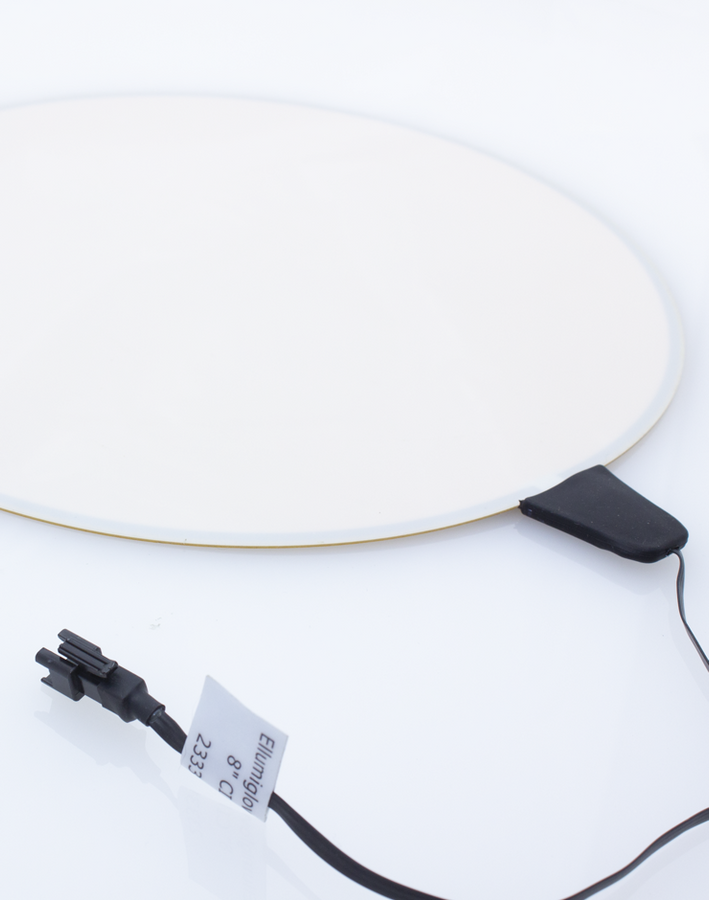

Parallel EL Panel 8in Circle

The new 8" Circle EL Panel is the newest size to our shapes collection, due to popular...
SKU: EOC080
Availability: 19 In Stock
$67.99
$67.99
Please hurry! Only 19 left in stock
Subtotal: $67.99
10 customers are viewing this product

Free Shipping

Free domestic ground standard shipping on orders over $50

Parallel EL Panel 8in Circle

Parallel EL Panel 8in Circle

$67.99

Parallel EL Panel 8in Circle

$67.99
The new 8" Circle EL Panel is the newest size to our shapes collection, due to popular demand. This circle is perfect for tons of applications, and comes with our white phosphor with a white overlay, so it has a whitish appearance both when on and off. This emits a cool white output, so when using in astrophotography applications, adding a piece of frosted acrylic helps knock down the color temperature to a more neutral white. The silicon connection cover makes the connection area far more robust than previous generations, an all around great panel!

With ALL EL Panels, this panel does require an inverter to operate. These panels are capable of being powered with any of our parallel inverters that are rated for at least 60sqin.

Total Lit Panel Area: 50.3 Sq In

Lit Panel Area LxW: 8″ x 8″

Overall Panel Dimensions: 8.39″ x 8.39″ x 0.012″

Thickness: 0.012″

Weight: 0.704 oz.

Printed Tail Dimensions: 0.8″ x 0.325″

Connector and Wire Description: 4″ Wire with 2-position JST connector

Brightness: @100V/400Hz 11.7 ft-L

Returns Policy

We use common carriers for our shipping, USPS, UPS, FedEx and DHL (International). When placing your order, make sure to select the shipping method you need. Most orders take 24-48 hours to process, but custom cut or custom made orders can exceed this timing. If you have an immediate project deadline and want to check shipping, please contact us prior to ordering.

All returns must be accompanied by a return authorization code (RAC). Items returned without a RAC will be refused and no refund will be given. To receive and RAC simply contact Ellumiglow.com at info@ellumiglow and simply reference your Order ID Number. Our telephone staff will not be authorized to give an RAC Number over the phone. Please note that our evening and weekend staff will not have access to your order.

All items that come in boxes must be returned in the same boxes. Returns must be picked up and in transit no more than 30 days from the date of delivery and must include all instructions, pieces etc. On approved returns we offer a complete refund less all shipping costs and a 10% restocking fee. We will make all of the shipping arrangements for you. Please note if you have small doorways, halls or elevators that some large boxes may not fit. Please call for exact dimensions if you are concerned. Orders that will not fit in to a customers home will be subject to this return policy.

Custom Orders: Due to the custom nature of many products, we cannot accept returns on custom orders. These include custom lengths or custom made orders of EL Wire, EL Tape, EL Paint, EL Panels, LED Strip Lights, Laser Wire, SewGlo and VynEL. If you are concerned about the returnability of your products, please call or email us before your purchase.

Due to the nature of EL Paint, any EL Paint orders are ineligible for return, unless the product is defective at the time of delivery. In the event of defective paint and/or other items, the items will be exchanged and shipping costs will be the responsibility of Ellumiglow. Exchanged paint or items may be required to be packaged for shipment by the purchaser.

Please note: Custom cut or custom made lighting applications, driver or programming are non-cancellable, non-returnable upon order commencement. Lighting devices (Electroluminescent, Laser, LED products) from Ellumiglow/Future Illuminations used in combination with a driver and/or inverter from outside companies voids product warranty without exceptions.

We've made the returns process simple. Products purchased through Ellumiglow and under warranty* may be returned for replacement by following these steps:

1. Contact Ellumiglow's Customer Service at 877-615-6556, or email support@ellumiglow.com to obtain an RAC number. NOTE: Submissions without an RAC number will not be completed.

2. Fill out the Return Authorization Form in its entirety and submit the form. Please write the RAC code on outside of shipping box.

3. Return the authorized item(s) per shipping instructions.

4. Our Replacement Department will process your request.

Need this product or another product customized in a certain way? Custom cut, shapes, animated effects?

Ellumiglow is a full service lighting company, whether we're delivering quality lighting components or working directly with our customers to deliver a completely unique custom lighting solution. Our ability to customize products range from prototyping or single piece solutions, to providing mass produced lighting fixtures and lighting components. We would love to work with you to make your next project a glowing success! Here's a small list of the customizations we offer.


EL Tape / Panels For EL Tape and Panels, we offer full customization. From custom shapes, sizes or colors, animated effects, even specialty applications.
Split EL Tape For Split EL Tape, we offer custom cutting and connecting, lengths, and even widths.
LED Strips and Lights We have a full cut and solder shop, so we can offer custom lengths, quick turn volume manufacturing of various LED applications.
SewGlo Illuminated Thread We offer not only custom cutting and connecting services, but full prototyping to production services as well. Anything from one-off custom embroidery or stitching, to volume production of your company's product line.
EL Inverters Need an inverter that is not listed on the website? We can help! Our Engineering department designs and fabricates custom tuned inverters for single applications, or we can volume manufacture specific inverters or inverter components.
EL Wire / TruEL Wire We offer a full range of custom cutting and soldering, to even custom diameters, durometers, or colors.
VynEL Panels We offer full customization depending on the application, ranging from aerospace to wearables. For a full list of our customizations, click here.
