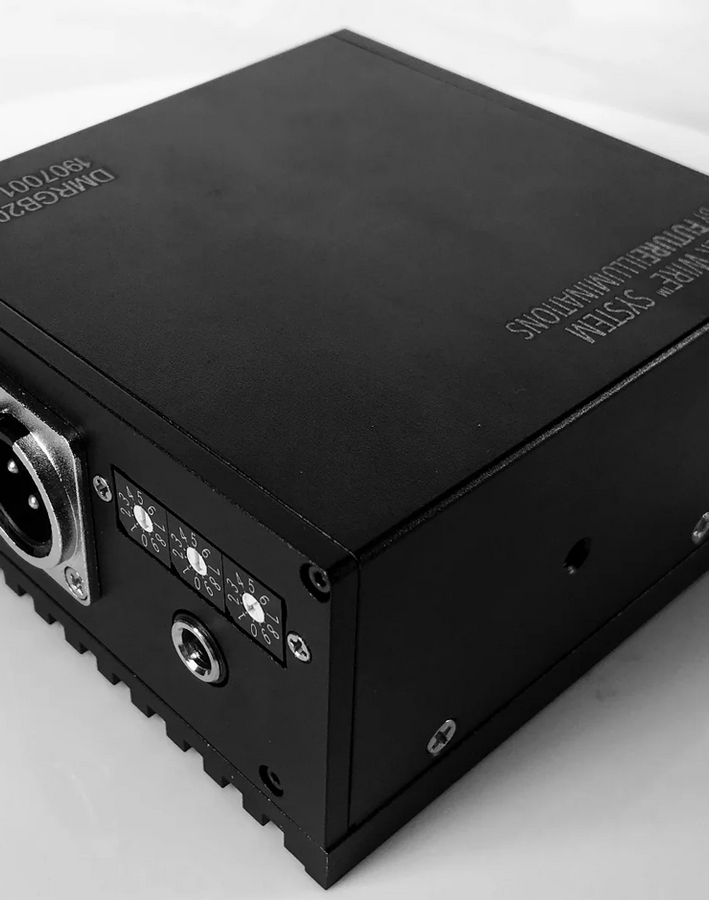

Laser Wire® RGB 200mW Module - DMX Controllable

  • The Laser Wire® RGB 200mW Module is a DMX Controllable Laser Module specifically designed for the event, tradeshow and retail industries.
System Specs
$799.99
Free Shipping Orders over $50
Secure Checkout SSL encrypted
30-Day Warranty Against defects
The Laser Wire® RGB 200mW Module is a DMX Controllable Laser Module specifically designed for the event, trade show and retail industries. Its high output power make virtually any length of Laser Wire® shine at its brightest with the combined output power of 200mW. Externally control this laser module with DMX protocol to allow changing of 65 million color possibilities, including WHITE!

Now, retail designers, Hollywood set design, stage performers and more can have the color they need, right at their fingertips. This module combines a 70mW Blue and Red, and 60mW Green module to create our brightest Laser Wire® driver ever. For more information on how to incorporate Laser Wire® systems into your next system, please contact us.

Size: 100mm x 100mm x 55mm (3.9" x 3.9" x 2.1")






















































PARAMETER

SPECIFICATIONS

TEST CONDITIONS

Wavelength

450nm, 520nm, 638nm

Tc = 25°C

Output Power

<60mW, <200mW

Tc = 25°C

Laser Modes

CW



Spectral Width

<2.0nm

Tc = 25°C

Wavelength Shift

0.2nm

Nm/C°

Operating Current

<650mA, <800mA @12V DC

Tc = 25 ±3 °C

Operating Voltage

5V DC



CDRH Class

Class IIIb



MTBF

10,000Hrs

Tc = 25 ±3 °C
