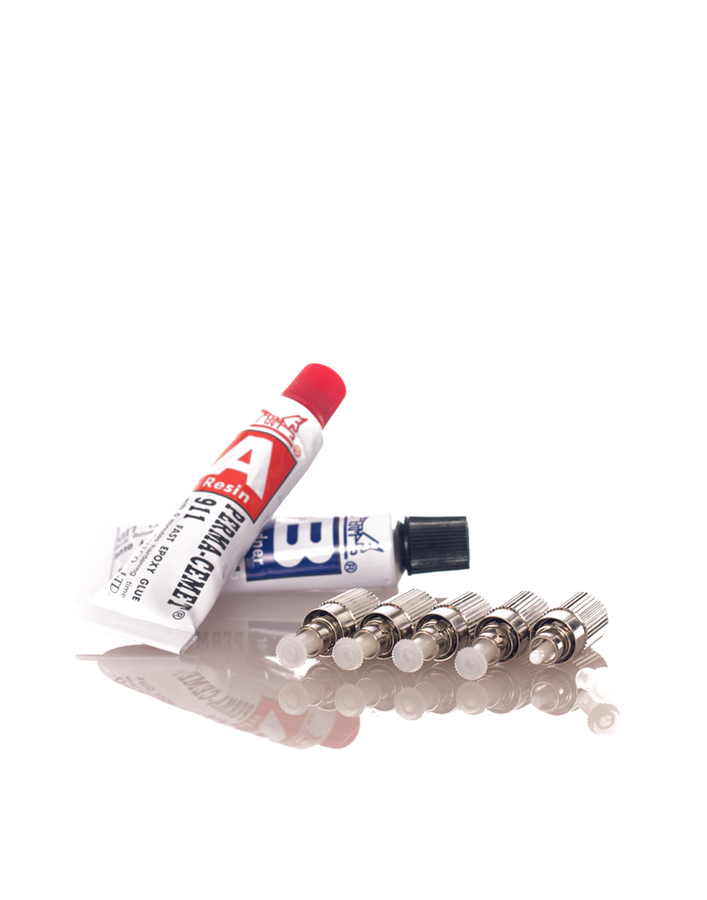

Laser Wire™ Custom Connection Kit Top View
Laser Wire™ Custom Connection Kit Front View
Laser Wire™ Custom Connection Kit Side View

Laser Wire® Custom Connection Kit

This custom connection kit is great for those who want to go more in depth and hands-on...
SKU: LWO112-FC Connector (For Capsule Modules & RGB Modules)
Availability: 50 In Stock
Please hurry! Only 50 left in stock
Select Connector Type: FC Connector (For Capsule Modules & RGB Modules)
Subtotal: $35.00
10 customers are viewing this product

Free Shipping

Free domestic ground standard shipping on orders over $50

Laser Wire® Custom Connection Kit

Laser Wire® Custom Connection Kit


Laser Wire® Custom Connection Kit

Select Connector Type: FC Connector (For Capsule Modules & RGB Modules)
This custom connection kit is great for those who want to go more in depth and hands-on with our line of Laser Wire® Products. With this kit you will learn how to make connections on the cable on your own. The kit comes with 5 FC Connectors and a specific 2 stage epoxy glue that our experts have found works perfectly without causing damage to our Laser Wire® cabling. Use wire strippers to remove the outer jacket from your Laser Wire® cabling, then you can feed the small glass core through the end of one of your FC Connectors. Use the 2 part epoxy to lock your wire into place at exactly the right length for any application. As long as you take care of the glue, it will last for multiple connections in the future! Follow up this process with trimming down the end of the exposed glass core that extends beyond the connector, gently polish it so that the core becomes flush with the top of the FC Connector.

Make sure to check out our Laser Wire® Professional Polishing Kit if you haven’t purchased it before. It will be of benefit to purchase the Polishing Kit, or to get a Masters Kit if it will be your first time making your own connections. This product, when combined with the Polishing Kit, will include everything that you need to make precisely polished terminations to your Laser Wire® cabling, just the way our Laser Wire® Professionals do it!

(5) FC Connectors: 1cm Diameter (.39in) by 2.38cm (.94in) Inner Diameter is 230 µm

(5) Boot Caps for Connectors: Conical Shaped Tube 3.18cm (1.25in) length. Inner Diameter is 900 µm

Fast Drying Resin Based Epoxy: One 10g tube of resin and one 10g tube of hardener.
