Electroluminescent
SKU: EOC010-UEL001-UTD001In Stock

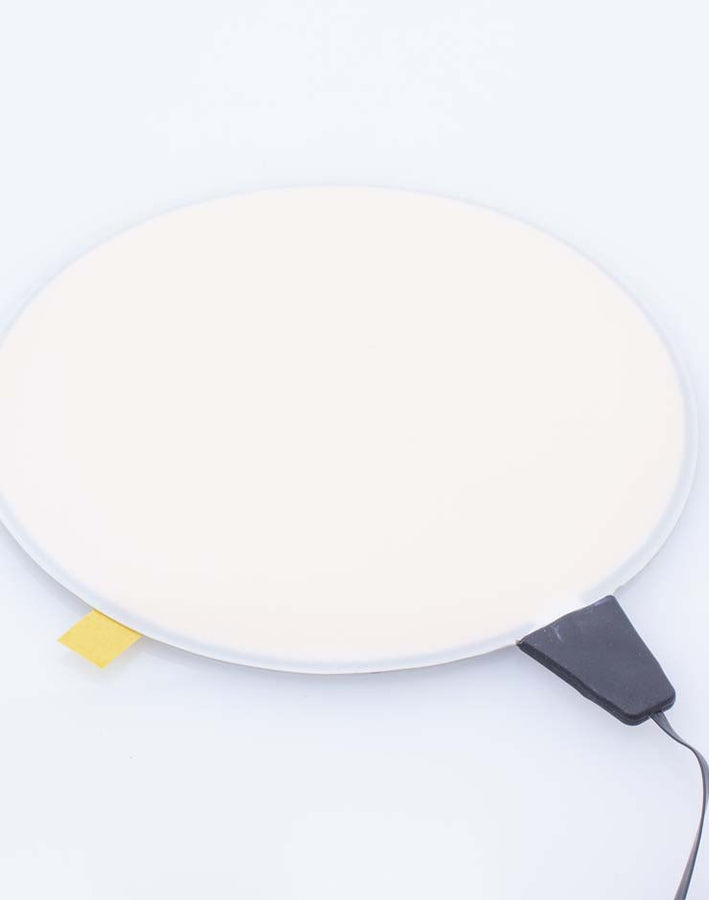

EL Panel 5" Circle

  • Round Evenly Illuminated Surface
  • Adhesive Front (and Back) *NEW in 2023
  • Silicone Connection Cover (For Extra Strong Connection)
  • White Overlay For White Appearance When On And Off
$52.99
Inverter Options 5V USB Inverter + Touch Dimmer (Requires 5V Source)
Free Shipping Orders over $50
Secure Checkout SSL encrypted
30-Day Warranty Against defects
The new 5" Circle EL Panel is an upgrade to our previous EL Circle panel in 2023. This circle is perfect for tons of applications, and comes with our white phosphor with a white overlay, so it has a whitish appearance both when on and off. This emits a cool white output, so when using in astrophotography applications, adding a piece of frosted acrylic helps knock down the color temperature to a more neutral white. The silicon connection cover makes the connection area far more robust than previous generations, an all around great panel!

With ALL EL Panels, this panel does require an inverter to operate. These panels are capable of being powered with any of our parallel inverters that are rated for at least 20sqin.

Medium Circle EL Panel Measures: 5" Circle
Total Lit Panel Area: 19.6 Sq In

Lit Panel Area LxW: 5″ x 5″

Overall Panel Dimensions: 5.24″ x 5.24″ x 0.012″

Thickness: 0.012″

Color: White (white with white overlay)

Weight: 0.352 oz.

Printed Tail Dimensions: 0.4″ x 0.325″

Connector and Wire Description: 4″ Wire with 2-position JST connector

Brightness: @100V/400Hz 16.7 ft-L
