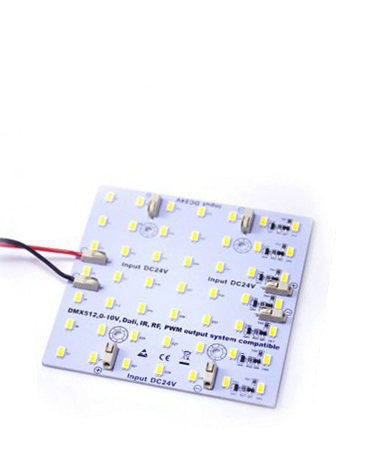

Wavelux 24V 5630 Constant Current LED Matrix 100mm square
- The Wavelux LED Constant Current Matrix is a 100mm square grid of light that can effectively be joined to other matrix to effectively create any shape, size, or pattern that you want...
$49.99
Free Shipping
Orders over $50
Secure Checkout
SSL encrypted
30-Day Warranty
Against defects

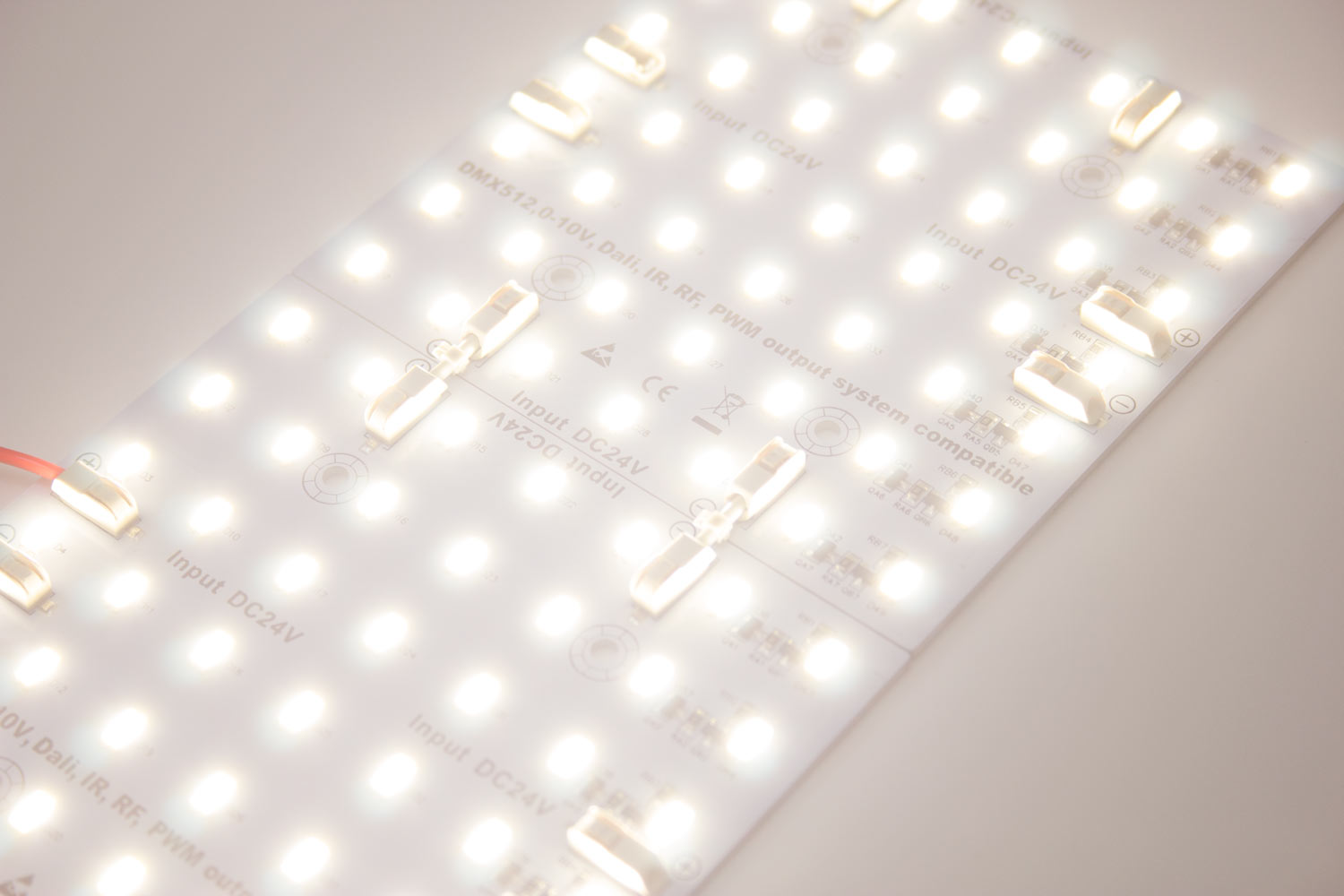

The Wavelux LED Constant Current Matrix is a 100mm square grid of light that can effectively be joined to other matrix to effectively create any shape, size, or pattern that you want.
The spacing of the LED's is close which allows for a significant amount of brightness in a small area. The grid is comprised of 49 individual LED's and from center to center of LED, they are spaced approximately 12.5mm apart. This Matrix is great for use in lighting projects where you want to cover a flat surface in light, or create an illuminated backdrop or backlight an object. These LED's are very bright, so diffusion is reccomended, and when diffused you will be able to achieve an more balanced and even visual aesthetic. This product is available in Natural White, so it shouldnt add warmth to colors, and they should appear close to their natural color when photographed or displayed.
24V 5630 Constant Current LED Matrix (49 LED pcs)
Dimensions: 100mm Square
Input Voltage: 24V
Cool White: 6000K
Daylight White: 4500K
Warm White: 2700K
