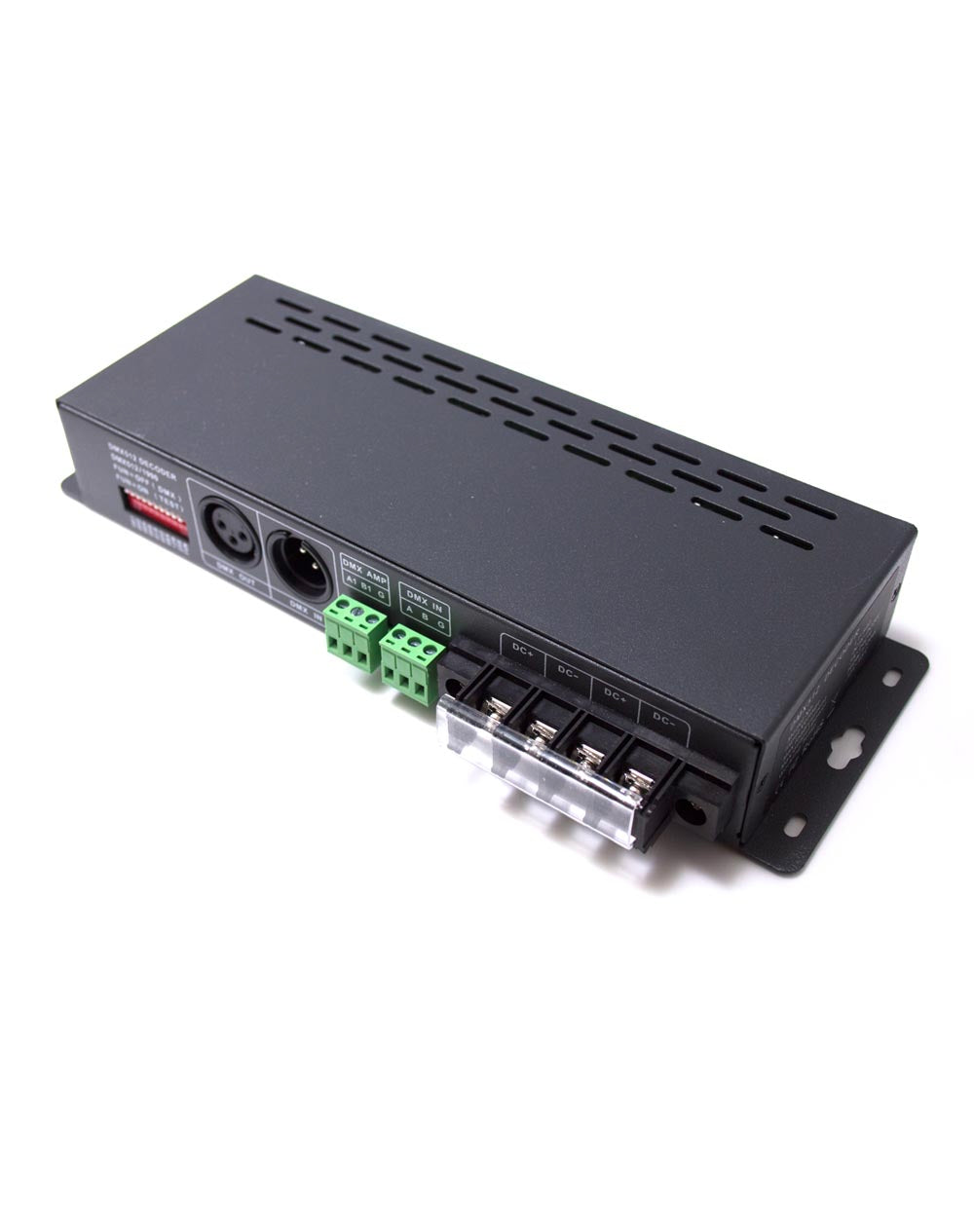

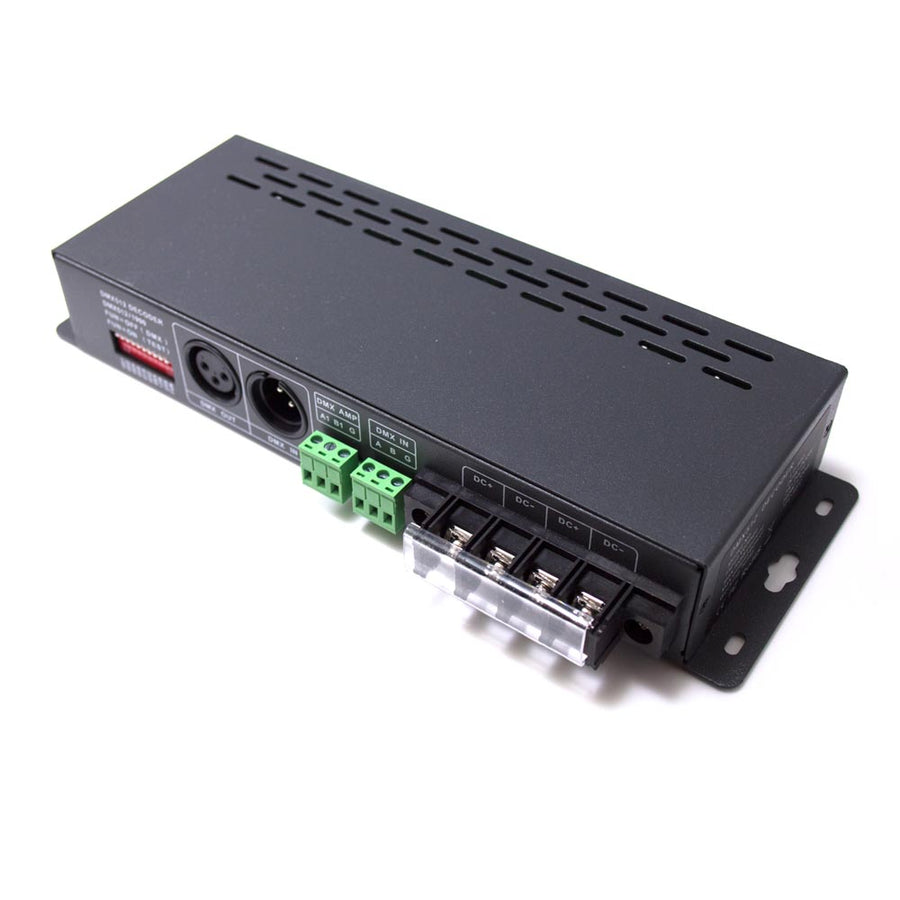

24 Channel LED DMX CV Decoder 5-24v
- Want a way to integrate LED technology into your stage design, interactive retail display, or incorporate LEDs into an existing DMX universe? The 24 Channel LED DMX Decoder ties into existing DMX systems...
$284.99
Free Shipping
Orders over $50
Secure Checkout
SSL encrypted
30-Day Warranty
Against defects
Want a way to integrate LED technology into your stage design, interactive retail display, or incorporate LEDs into an existing DMX universe? The 24 Channel LED DMX Decoder ties into existing DMX systems, offering 24 channels of PWM controllable LED outputs with 256 steps of brightness per output channel. Six strips of RGBW, eight strips of RGB, 12 strips of bi-color, or 24 monochromatic channels of LEDs can be ran off this single decoder. The input and output voltage can vary from 5 volts to 24 volts, meaning it can be used with existing 5-12V LED strips, or integrated with newer 24 volt LED strip systems. DMX Channel selection can be changed via the DIP switches. This unit also can used in standalone mode (requires RGB LEDs for best results). All single-point wiring connections are made via removable phoenix connectors for easy installation and repairability. Unit features DMX inputs via 3-pin XLR, RJ45 Ethernet, or 3 wire Phoenix connectors. This DMX Decoder is FCC, CE, and RoHS Compliant.
**Requires 1x DC Power Supply per 12 channels**
Input Voltage: 5-24 volts
**Requires 1x DC Power Supply per 12 channels**
Output Voltage: Dependent on Input Voltage
Max Current Load: 3 amps per channel (3A x 24)
Max Output Power: 360W/864W/1728W (5v/12v/24v)
DMX512 Input: XLR3, RJ45 Eithernet, or Phoenix Terminal
Output Type: 24 Channel CV PWM
Working Temp: -30°C ~ 65°C
Dimensions: L267mm x W128mm x H41mm
Weight: 1.95 LB
