Laser Wire®

Precision Light Cable.

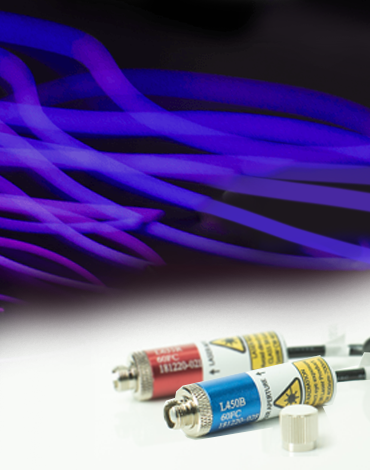

DualDrive Multicolored 8M Laser Wire™ System
DualDrive Multicolored 8M Laser Wire® System
DualDrive Multicolored 8M Laser Wire® System
DualDrive Multicolored 8M Laser Wire™ System
Laser Wire®
SKU: LWD801In Stock

DualDrive Multicolored 8M Laser Wire® System

  • Bright, Even Illumination
  • Silent Operation & Rich, Vibrant Color
  • Beautiful Gradients
  • Externally Controllable (Capsule)
  • Easily Embed Light Into Woods, Metals & Plastics
  • Portable Power Designed For Wearables (OpalDrive)
$288.99
Color Blue
Color2 Blue
Laser Module Type Capsule Module (20mW)
Free Shipping Orders over $50
Secure Checkout SSL encrypted
30-Day Warranty Against defects

The 8M DualDrive Laser Wire® Kit allows you to create a beautiful, smooth color transitions, at a length of slightly over 26 feet! This is an ideal product for projects that require a longer length of wire and more seamless blending, or fades between colors. The Dual Ended kit allows you to put a laser module at each end. With this, you can create gradients between any 2 different colored modules. Blink or fade modes will let you play with the look of your Laser Wire®, giving a unique appearance and dancing colors never before seen on any other light on the planet.  Laser Wire® Cable is the only product that allows you to pick what color your light is while using a sleek thin cable tube. With EL Wire, you are limited to one solid color, and a thicker (and heavier) diameter of wire to work with than our Laser Wire® Cabling. When you use EL Wire, if you want to switch colors, this means you have to take apart the project and replace the full length of wire with a new color. This isn’t the case with Laser Wire® cable. You can achieve dynamic, engaging, innovative visual effects and you are allowed to change it up! This allows for endless customization whenever you feel like it, as well as increase the brightness, longevity and much more! You can connect up two different colored Laser Modules for endless color customization.

Dual Drive Laser Wire® Kits let you choose your favorite color combinations as well as single color options. By adding different color modules on each end, this longer Laser Wire® kit will allow a wide range of color mixing, between any two colors. Using a Red and Blue module allows for a unique Red-Pink-Purple-Blue gradient that is brilliant. Blue and Green modules combined allows for a beautiful Blue-Aqua-Seafoam-Green gradient, and Red and Green modules combined gives fun Red-Orange-Yellow-Green gradients. This is something never seen before, and a highly desirable effect in the lighting world. Laser Wire® technology will leave you in awe each time you turn it on. We have recently revamped the Laser Wire® Modules so read on below to find the perfect laser module for you.

The OpalDrive Wearable Module includes a rechargeable lithium ion battery which stays powered for up to 6 hours on a single charge (blinking/red). With 3 modes, blink, fade and constant on, the OpalDrive Wearable Laser Module is an all-in-one solution for event, trade shows, retail applications, costuming, consumer products and much more! This module can also be recharged with a micro-USB device, like Power Bank type battery for even longer lasting charge.

Estimated Battery Runtime For OpalDrives varies depending on the color. Each color draws a different amount of power. On a Full Battery Charge, the time you can expect it to illuminate before needing to be recharged is as follows:
Blue - 2-4 hours
Green - 2-4 hours
Red - 3-6 hours

Due to popular demand, we recently released a new laser module; The Capsule Module. The Capsule Module is a perfect module if you are looking to plug in your Laser Wire® to a 5V source, like wall outlet, laptop, car, or a portable power bank battery. This type of module will run in constant ON mode when it is hooked up to power. It's smaller than our OpalDrives, lightweight, compact and easy to use. This module has more heat sinking than the OpalDrive so we find that if using in Retail or Trade Show Displays, or for long periods of continuous use, the Capsule Module is a great fit. The biggest difference between the OpalDrive and the Capsule Module is that the Capsule module doesn't have an internal battery. Both Laser Modules will be the same color and brightness. Capsule Modules are externally controlled via PWM, and can be hooked up to LED DMX Decoders for easy external dimming.

Both choices of Laser Modules are awesome, so choose the best fit for your application. Simply select the laser module type you wish to use in the drop-down menu before adding the product to your cart!

Laser Wire® brand cable Length: 8 Meters (26.2 ft)


Laser Wire® brand cable Diameter: 0.9mm (900um)



Opal Drive Dimensions: 65x24x12mm
Capsule Dimensions: 50mm x 14m DIA (500mm Cable Length) with USB Male A
Input Voltage: 5V DC
Output Voltage: 3.7V DC
Laser Power: 20mW
Laser Class: Class 3a (No USA Variance Required)
